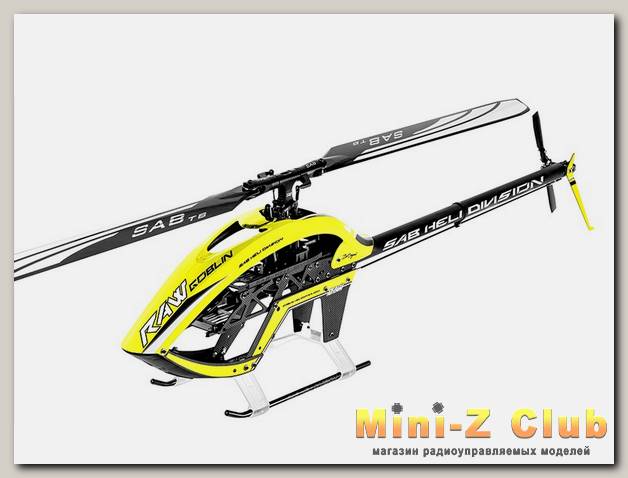

Goblin Raw 700 Yellow

TECHNICAL SPECIFICATIONS

- AIRFRAME weight: 2620gr (with blades, no battery, no electronics)

- Main blade length: 650mm to 720mm

- Tail blade length: 105 to 115 mm

- Main rotor diameter: 1548 mm (with 690 mm blades included)

- Tail rotor diameter: 284 mm (with 105 mm tail blades included)

- Cyclic Servos: standard size 40mm

- Tail Servo: standard size 40mm.

- Main Rotor ratio: 11.8 to 8.4 (21T included: 10.1:1)

- Tail Rotor ratio: 5.0-4.8:1 (26T included: 4.9:1)

- Typical motor: 4525 series

- Typical speed controller: 12S, 160-200 A

- Battery size: 12S 4500-5500 mAh.
